200G Box Access Switch AP-S9510-24DC-H

Product characteristics:

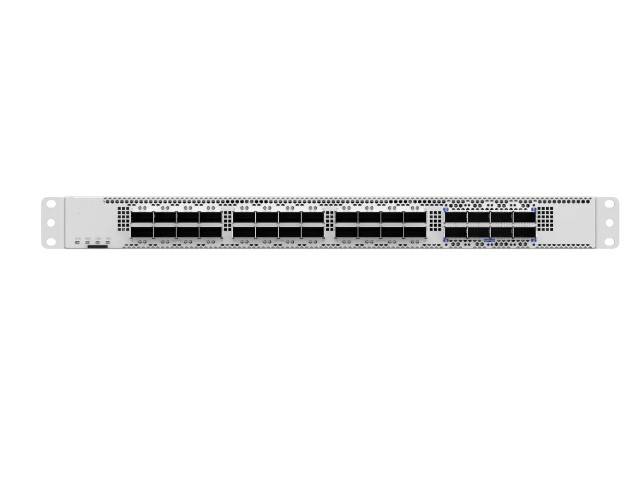

Rich ports, supporting 24 200G QSPF56 and 8 400G QSPF-DD ports, providing flexible networking performance

Hardware level redundancy protection, ensuring business continuity and uninterrupted network

Maximum 120KM long-distance communication, DCI interconnection is simpler and more convenient

Build a lossless Ethernet network to ensure no packet loss in the end-to-end communication process of RDMA

Telemetry network monitoring, automated operation and maintenance, making management simple and efficient

Product Overview

AP-S9510 series switches are a new generation of high-performance and high-density switches launched by Anpson for AI and other application development trends. Provide high-density 200GE/100GE port access. The AP-S9510 series switch cooperates with the AP-S9510-24DC-H switch to meet the design requirements of the Spine-Leaf three-layer network architecture.

RG-S6580 series switches currently include the following models:

AP-S9510-48DC-H: Supports 48 100G DSFP ports+8 400G QSFP-DD ports.

AP-S9510-24DC-H: Supports 24 200G QSFP56 ports+8 400G QSFP-DD ports.

Product characteristics

● Build a next-generation data center network

The rapid development of applications such as AI/machine learning has driven the evolution of next-generation data center networks to 100G/400G. The next generation data center network requires equipment with higher performance and greater bandwidth in a unit space. The AP-S9510 series switches can provide up to 48 100G/24 200G ports and 8 400G ports in a 1U height space, better meeting the evolution requirements of the next generation data center network.

● Build high-performance, low-latency data center networks

The AP-S9510 series switch, combined with the AP-S9510-24DC-H switch, is based on network flow control technologies such as PFC/ECN, and MMU tuning technology. It can build an end-to-end, lossless, and low-latency forwarding RDMA (Remote Direct Memory Access) basic bearer network, meeting the network deployment requirements of application scenarios such as AI/machine learning, high-performance computing, and distributed storage of big data.

● Telecommunication level reliability protection

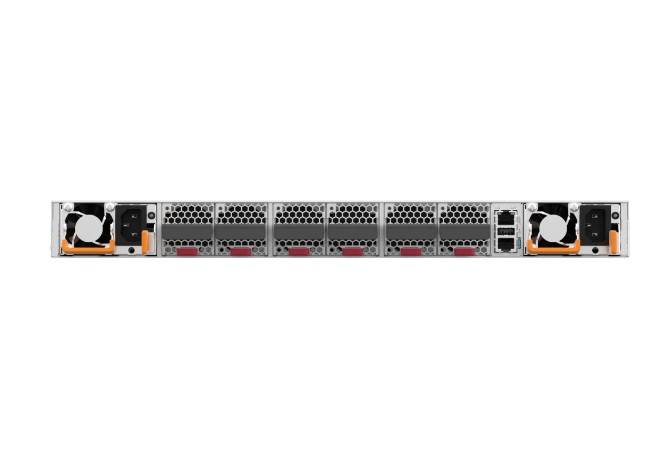

The AP-S9510-24DC-H switch supports 1+1 power redundancy and 5+1 fan redundancy. All power modules and fan modules can be hot swapped without affecting the normal operation of the device. In addition, the entire machine also supports power supply and fan fault detection and alarm, and can automatically adjust the fan speed based on temperature changes, better adapting to the environment of the data center. It also has multiple reliability protection at the device level and link level. Adopt overcurrent protection, overvoltage protection, and overheat protection technologies.

In addition to device level reliability, this series also supports a wealth of link reliability technologies, such as support for GR perfect restart, BFD fast forwarding detection, and other mechanisms. When the network carries multiple services and large traffic, it reduces the impact of exceptions on network services and improves the reliability of the entire network.

● IPv4/IPv6 dual stack protocol multi-layer switching

AP-S9510-24DC-H switch, with hardware supporting IPv4/IPv6 dual stack multi-layer wire speed switching, hardware distinguishing and processing IPv4 and IPv6 protocol messages, and supporting multiple Tunnel tunneling technologies (such as manually configuring tunnels, etc.). It can provide flexible IPv6 inter network communication solutions based on the needs of IPv6 networks and network status.

Support a variety of IPv4 routing protocols, including static routing, RIP/RIPv2, OSPF, BGP4, etc., to meet the needs of users in different network environments to choose appropriate routing protocols and flexibly establish networks.

Support a wide range of IPv6 routing protocols, including static routing, RIPng, OSPFv3, BGP4+, etc. Whether upgrading an existing network to an IPv6 network or creating a new IPv6 network, you can flexibly choose the appropriate routing protocol to form a network.

● Perfect management

Support rich management interfaces, such as Console, MGMT port, USB port, SNMPv1/v2/v3, and general network management platform. Support CLI command line, Telnet, and cluster management to make device management more convenient, and support encryption methods such as SSH 2.0 and SSL to make management more secure.

Support for SPAN/RSPAN images and multiple image observation ports. It can analyze network traffic to take corresponding management and maintenance measures, making the originally invisible network business application traffic clear at a glance. It can provide users with multiple network traffic analysis reports, helping users optimize network structure and adjust resource deployment in a timely manner.
