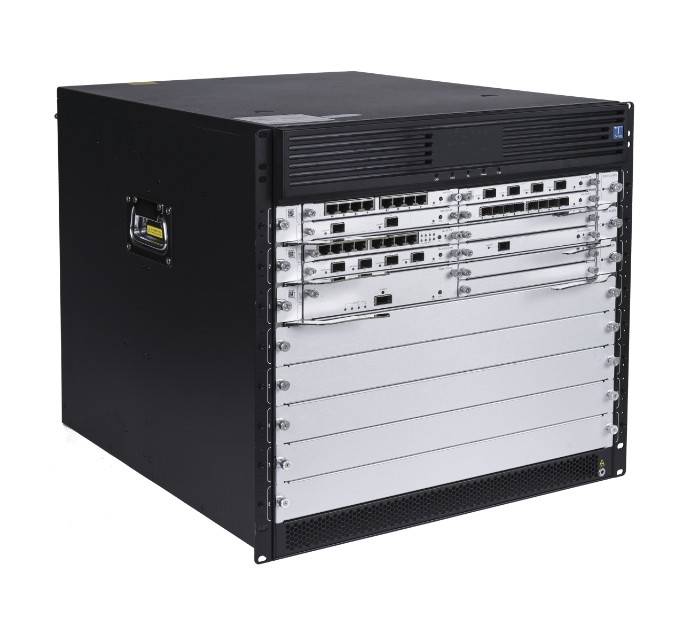

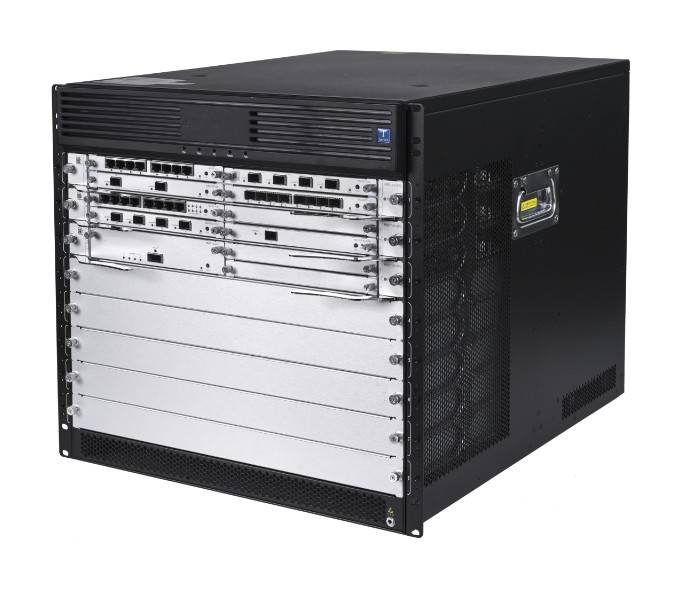

Multi service cloud architecture core router AP-TH601PF-R

The next-generation high-end distributed router launched for enterprise network cloud architecture and cloud services is mainly applied to the core and aggregation nodes of wide-area interconnection scenarios in government, finance, and power energy.

Product characteristics:

CLOS orthogonal architecture, line speed forwarding without blocking, and high service transmission efficiency

A new generation of self developed RGOS operating system that automatically repairs faults in milliseconds, ensuring that status is not lost

Redundant design of key components to maintain uninterrupted business and improve overall reliability

Independent heat dissipation zone+intelligent wind control system, green energy saving and noise reduction

Comprehensive architecture upgrade

The AP-TH601PF-R series chassis is based on an elastic and scalable platform, adopts CLOS non blocking switching and advanced distributed multi service processing architecture, and can support high-speed interfaces such as 100GE and 40GE. The RSR77-XA-08 chassis uses an independent switching network board, while the routing engine, service engine, and forwarding engine are completely independent, achieving the separation of management, control, and data in three planes, further improving the high availability of services.

Modular and fully compatible AP-TH601PF-R series adopts a daughter/mother card separation design. Currently, it provides two modular products, AP-TH601PF-R-08 and AP-TH601PF-R-03, using a unified hardware and software platform. The two device line cards are fully compatible, which can adapt to the application requirements of different network layers of continuously developing enterprises.

Green energy-saving design

The design of the AP-TH601PF-R series implements the design concept of environmental protection and energy conservation. The chassis supports efficient modular power supplies. The chassis adopts the method of independent power supply by zones, improving the efficiency of the power supply system and reducing the energy consumption of the computer room.

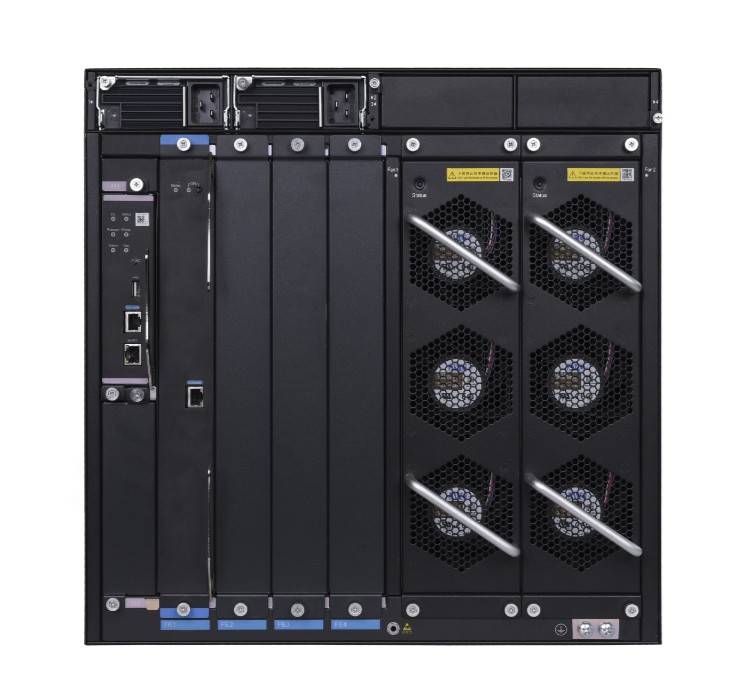

The chassis adopts a partition heat dissipation method of physical partition isolation. The intelligent fan module supports partition temperature control, multi-level speed regulation, energy saving and noise reduction, greatly saving air conditioning energy consumption for users.

High performance full service built-in

AP-TH601PF-R series distributed service line cards have built-in full service features, incorporating IPv6, BGP, IPSec, MPLS VPN, QoS, and other technologies. When new business features need to be loaded, there is no need to purchase a software license or multi business board, saving customers investment costs.

Strong routing processing capabilities

Support various dynamic routing protocols to meet various networking requirements; In addition, it supports the policy routing function, which can flexibly control and schedule network traffic, and meet the routing characteristics requirements of users such as financial, government, and enterprise networks.

Relying on high-performance flow tables and fast forwarding technology, it improves the convergence mechanism of traditional routing protocols through functions such as GR, FRR, and BFD, and achieves rapid convergence of large networks.

Comprehensive MPLS VPN functionality

The AP-TH601PF-R series supports comprehensive MPLS protocols and high-performance P/PE applications; Support fully distributed two-layer and three-layer VPN services. Provide high-performance, secure, and multi-level MPLS VPN solutions.

The AP-TH601PF-R series supports distributed multicast VPNs, enabling high-performance multicast services on the MPLS VPN network online to meet users' multicast business needs such as video conferencing and distance learning.

The AP-TH601PF-R series supports MPLS VPN network fault location function and MPLS PING/TRACEROUTE, which can help users quickly locate fault points.

Telecommunication level reliability design

Redundancy of key modules: routing engine redundancy, switching network board redundancy, power supply N+N redundancy, dual boot image files, and dual configuration files.

Hot plugging of key components: The routing engine, line card board, business board, power module, and fan frame all support hot plugging.

Flexible device management

The AP-TH601PF-R series supports hierarchical user management and password protection, and achieves separation of control and forwarding through multi-core CPU technology, ensuring that device management can be achieved in multiple environments, including on-site and remote environments; Authenticate the logged in user, and grant different management permissions to users at different levels to ensure the safety of the device.
