Wi-Fi 5 Dual RF Indoor Mounted Wireless Access Point AP-TG130-T

Recommended deployment in indoor scenarios such as higher education, government, general education, finance, and commerce

Employing the design of Anpson AI Radio, independent intelligent RF brings a better wireless experience, and is recommended for deployment in indoor high-density scenarios such as higher education, government, general education, finance, and commerce.

Product characteristics:

5G optical port+5G electrical port, more flexible networking

Newly upgraded Wi-Fi 6 with a wireless rate of up to 8642Mbps

AI Radio intelligent guided terminal roaming to ensure uninterrupted business

Independent RF security protection for AI Radio, combining wireless experience and network security

Support for unified cloud management and intelligent tuning to make operation and maintenance easier

Product Overview

AP-TG130-T is an 802.11ax four RF high density wireless access point product launched by Anpson for indoor high density scenarios such as higher education, government, general education, finance, and commerce.

AP-TG130-T supports protocols such as 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and 802.11n; With a hardware independent four RF design, the entire machine can provide a maximum access rate of 8.642Gbps. The high-speed access rate eliminates the bottleneck of non linearity.

The AP-TG130-T supports the Anpson AI Radio design, and the additional smart RF card provides users with a better experience and real-time full-band security protection, solving wireless experience and wireless security issues in their Wi-Fi environment.

AP-TG130-T fully considers important factors such as wireless network security, radio frequency control, mobile access, quality of service assurance, seamless roaming, and expansion of Internet of Things modules, and cooperates with Anpson wireless controllers and RG-WIS products to complete wireless user data forwarding, security, access control, and Internet of Things application expansion.

AP-TG130-T can support local power supply or Ethernet power supply modes, and can be flexibly selected according to the customer's on-site power supply environment; At the same time, this product supports wall hanging and ceiling mounting, and can be safely and conveniently installed in various locations such as walls and ceilings. It is particularly suitable for deployment in high-density environments such as large campuses, conference centers, squares, corporate offices, and operational hotspots.

Product characteristics

Independent multifunctional AI Radio

AP-TG130-T is an AR series AP product launched by Anpson, adding hardware independent smart RF cards to enhance the Wi-Fi 6 experience from different dimensions.

● Intelligent security guard

AI Radio, as an independent RF card, can provide 7 * 24 hour, 2.4G/5G full band wireless security protection in a lossless wireless experience, supporting radar scanning and hidden danger elimination for wireless network security. It is very suitable for scenarios such as finance, education, government, business, and enterprise.

● Enhanced roaming experience

AI Radio, as an independent RF card, can scan the terminal status in real-time under the lossless wireless experience, ensuring stable roaming switching opportunities. At the same time, Anpson's RG-WIS system ensures better roaming decisions based on the AI Radio scan results of each neighbor's access point. A good roaming experience is very suitable for mobile office, mobile terminal video conferencing, online courses, and other scenarios.

Support for minimal Ethernet all optical solutions

The AP-TG130-T supports the updated Simplex Ethernet All Optical scheme from Anpson.

The Ampson Ultra Simple Ethernet All Optical scheme uses optical fiber lines instead of traditional Ethernet lines. This scheme has advantages such as flat network, simple construction, beautiful wiring, and support for elastic network upgrades. It has significant advantages over traditional Ethernet networking schemes.

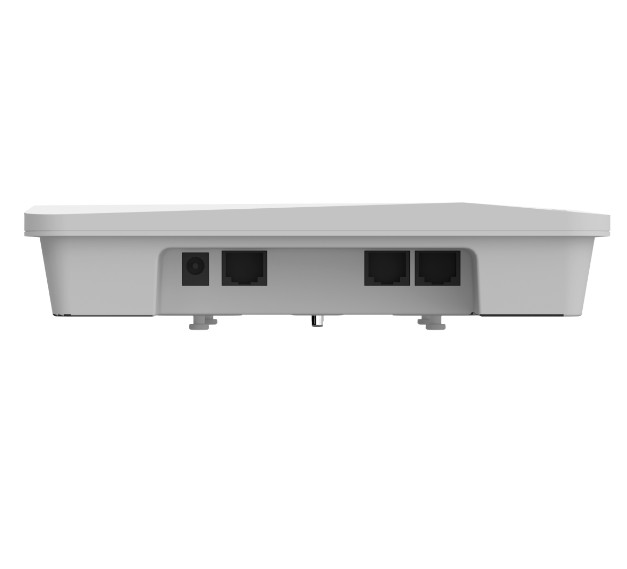

Multi service port design

The AP-TG130-T machine can support up to 6G wired access rate.

An adaptive Ethernet port that provides high-speed wired access of up to 5G, enabling high-speed transmission conversion between wireless and wired.

An adaptive Ethernet port that provides up to 1G of high-speed wired access, enabling high-speed transmission and conversion between wireless and wired. It can expand other module units such as the Internet of Things and enrich application scenarios.

A 5G SFP port can adapt to the wired network link configurations of different customer sites, supporting SFP optical ports for data transmission.

High speed wireless, more reliable power saving

1024 QAM high-speed access rate

The AP-TG130-T adopts a four radio frequency design and a new generation of Wi Fi wireless standard 802.11ax protocol; The simultaneous activation of four radio frequencies, with high-speed wireless up to 8.642Gbps, brings a high-speed and complete experience.

● OFDMA high-density user access

The AP-TG130-T supports the OFDMA function of the 802.11ax standard, dividing the WLAN channel into multiple narrower subchannels, with each user occupying one or more subchannels. Through AP scheduling, multiple users can receive and send messages simultaneously, reducing competition and backoff between users, reducing network latency, and improving network efficiency.

In high-density deployment and access environments, the average rate of a single user can be up to four times that of 802.11ac.

● Green and environmentally friendly, reducing power consumption per unit performance

A large number of new energy-saving technologies have been applied to the AP-TG130-T, including single antenna standby technology, dynamic MIMO power saving technology, enhanced automatic power saving transmission technology, and packet by packet power control technology. Combined with high-performance power supply design, the AP-TG130-T provides high-speed wireless access while easily saving energy and power.

● Intelligent identification function

Support intelligent terminal identification, and be able to identify intelligent mobile terminals such as iOS and Android as well as PCs. Combining intelligent identification and RG-WIS systems, it is possible to achieve visual wireless network management based on wireless terminal types, as well as one-click network optimization.

● Intelligent local forwarding

AP-TG130-T inherits Anpson's intelligent local forwarding technology, breaking through the traffic bottleneck limitations of wireless controllers. The data forwarding mode of the AP-TG130-T product can be flexibly preconfigured through the Anpson wireless controller. Based on the SSID name or user VLAN, it is determined whether to forward through the wireless controller or directly enter the wired network for data exchange.

Through local forwarding technology, data that is delay sensitive and requires high real-time transmission can be classified and forwarded through wired networks, which can greatly alleviate the traffic pressure of wireless controllers and better adapt to the requirements of high traffic transmission in 802.11ax networks.

● Rich quality of service assurance (QoS)

The AP-TG130-T supports rich quality of service (QoS), bandwidth limitations in multiple WLAN/AP/STA modes, and WMM (Wi Fi Multimedia) that defines priorities for different business data. It achieves timely and quantitative video and audio transmission capabilities, ensuring smooth multimedia usage.

The multicast to unicast technology supported by AP-TG130-T solves the problem of packet switching and large latency in multicast applications such as video on demand in wireless networks, resulting in poor video flow, and improves the experience of multicast video services in wireless networks.

Comprehensive safety protection is easier to use

● User level security access

AP-TG130-T supports multiple user access authentication methods such as Web, 802.1x, MAC address, and local authentication for customers to choose from. Moreover, AP-TG130-T fully supports the global security network solution of AnpsonGSN (Global Security Network). A standardized network access control system strictly defines network access from multiple levels, including user access, authorization, host compliance, network behavior monitoring, and network attack prevention. Through this control, the construction concept of "authentication upon access, and security upon access" is realized.

● Comprehensive wireless security protection

Together with the Angson integrated network management system RG-SNC and RG-WS series wireless controllers, the AP-TG130-T has a series of wireless security protection functions such as WIDS (Wireless Intrusion Detection), radio frequency interference localization, rogue AP countermeasures, anti ARP spoofing, DHCP security protection, and fundamentally builds a safe and reliable wireless network for users.

● Multiple ease of use authentication methods

By pairing with the Anson authentication system or multi-service AC, it supports multiple efficient and convenient authentication methods such as sensorless, SMS, and QR code visitors.

Wireless users access the network through a non awareness authentication method, requiring only the first entry of their account and password, avoiding the process of entering their account and password again after starting up, making it easy for users to access the Internet with one authentication.

After accessing the wireless network through SMS authentication, a authentication page will pop up. Visitors can register with their mobile phone number and operate online according to the account password in the received SMS.

QR code authentication is another convenient way for visitors to access the Internet. After accessing the wireless network, visitors can obtain a QR code prompt, and can access the network with the authorization of the respondent (employee). The visitor's behavior is directly related to the respondent, providing higher security.

Flexible device management mode

● Flexible switching between fat and thin modes

The AP-TG130-T supports flexible switching between Fat and Fit modes, enabling zero configuration installation and usage in the Fit mode, while improved remote management greatly improves the efficiency of wireless network operation and maintenance management.

● Web interface management

AP-TG130-T provides a Web management interface for AC and AP, which not only makes it easy to handle wireless configuration, but also enables the overall operation of wireless networks. Through the Web interface of AC, it is not only possible to manage the AP but also manage the users connected to the AP. It can limit the speed of users and restrict their access to the network, facilitating the planning and operation and maintenance of wireless by operation and maintenance personnel.

● Linkage with network management software

AP-TG130-T can be linked with the Anpson network management software RG-SNC, which can manage all wireless controllers and wireless APs in the network, including configuration backup of devices, query of device status, and provide wireless thermal maps to display the distribution status of wireless APs in the actual environment.

Small branch office All-in-One

In the small branch office scenario of an enterprise, AP-TG130-T can not only provide wireless access services for the office area, but also serve as a VPN gateway role, realizing the All-in-One of the AP+VPN gateway, simplifying network deployment for users and saving construction costs.

● PPPoE

AP-TG130-T supports the PPPoE client function and can access the Internet through PPPoE, making it possible for branch office areas to access the Internet without the need for additional gateways.

● NAT

The AP-TG130-T supports the NAT function, providing NAT address translation between the local area network of branch offices and the Internet.

● IPsec VPN

AP-TG130-T supports IPsec VPN, enabling the establishment of IPsec VPN tunnels between branch office areas and the office headquarters, and achieving LAN interconnection between the headquarters and all branch office areas.
