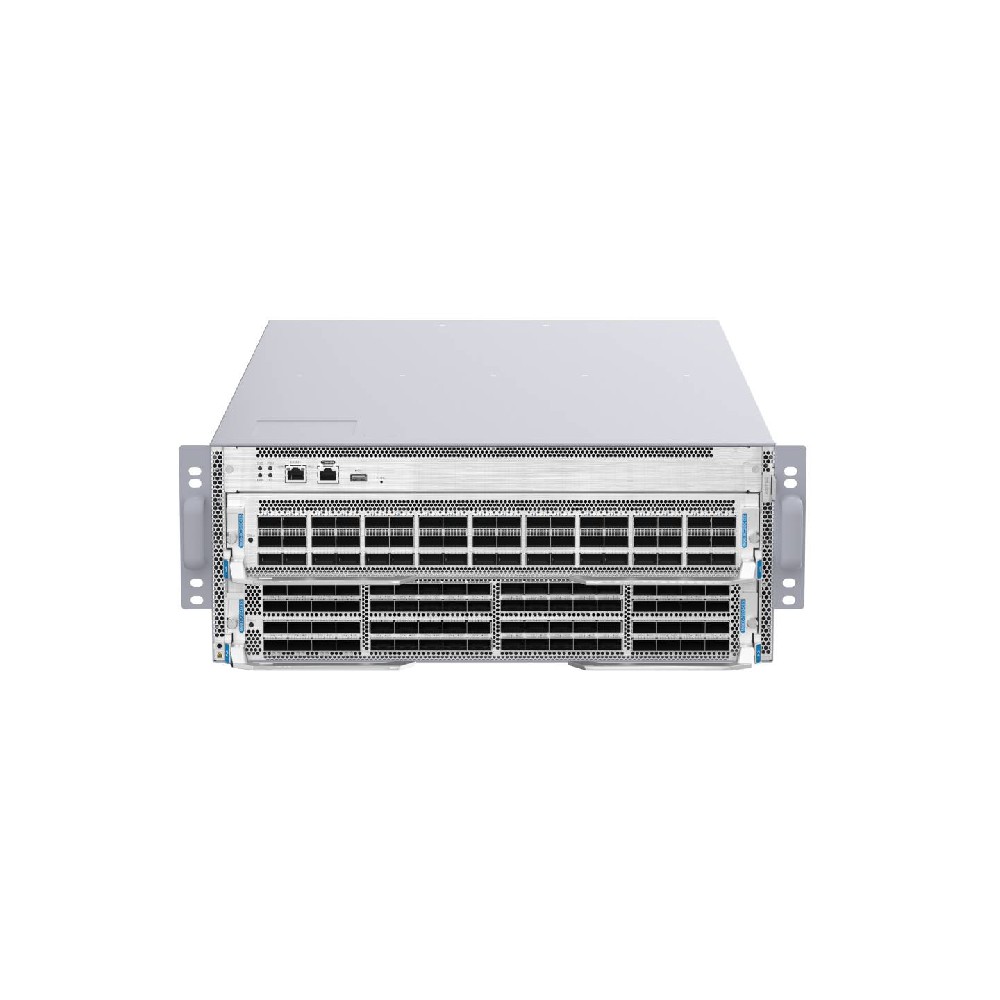

Data Center High Density Card Core Switch AP-3301-TF

Product characteristics:

Supports 100G and 200G line cards, and the entire machine can provide up to 144 100G or 72 200G ports

Hardware level reliability assurance, continuous business operation, and stable data center network

MACsec data encryption transmission, effectively ensuring the security of business data

Telemetry network monitoring, automated operation and maintenance, making management simple and efficient

Straight front and rear air duct design enhances heat dissipation efficiency

Product characteristics

Building the Next Generation Data Center Network

● Data center with operational and maintainable traffic

To help customers create a data center with traffic that can be operated and maintained, the AP-3301-TF switch supports high-precision traffic collection, enhances ERSPAN, Telemetry, and silent packet loss alerts, and can proactively alert devices when silent packet loss occurs.

● DCI interconnection

The AP-3301-TF switch supports large cache and million-level routing in features, supports * MPLS SR/SRv6, and helps customers build low-cost DCI interconnection/MAN through the switch. Support the MACSec function to improve data transmission security.

● Fast fault detection

The AP-3301-TF switch, combined with a large capacity BGP and high-precision hardware BFD, can quickly complete fault detection and traffic switching, reducing traffic losses. Through the kernel and SDK non disruptive fault repair technology, the service interruption time for subsequent fault repair of network devices is reduced.

High reliability design at telecommunication level

The AP-3301-TF switch supports 2+2 power redundancy and 7+1 fan redundancy. All power and fan modules can be hot swapped without affecting the normal operation of the device. In addition, the entire machine also supports power supply and fan fault detection and alarm, and can automatically adjust the fan speed based on temperature changes, better adapting to the environment of the data center. It also has multiple reliability protection at the device level and link level. Adopt overcurrent protection, overvoltage protection, and overheat protection technologies.

Support segmented routing (SR) features to make the network more intelligent

● MPLS-SR characteristics

The AP-3301-TF switch supports the MPLS-SR feature. Compared to MPLS L3VPN technology, MPLS-SR technology is more flexible in routing. Traffic forwarding paths can be specified at the Ingress node to meet user service path planning requirements.

●  SRv6 features

The AP-3301-TF switch supports the SRv6 feature, which is a next-generation network protocol for the future and supports seamless connectivity to IPv6 networks. Provide massive address space access to meet the needs of massive tenants. The traffic forwarding path can be defined according to the Segment List to achieve flexible routing and meet the user's business path planning requirements.

IPv4/IPv6 Dual Stack Protocol Multilayer Switching

AP-3301-TF switch, with hardware supporting IPv4/IPv6 dual stack multi-layer wire speed switching, hardware distinguishing and processing IPv4 and IPv6 protocol packets, and supporting multiple Tunnel tunneling technologies (such as manually configuring tunnels, etc.), can provide flexible IPv6 inter network communication solutions based on the needs of IPv6 networks and network status.

Support a wide range of IPv4 routing protocols, including static routing, RIP, OSPF, IS-IS, BGP4, etc., to meet the needs of users in different network environments to choose appropriate routing protocols and flexibly establish networks.

Support a wide range of IPv6 routing protocols, including static routing, RIPng, OSPFv3, BGP4+, etc. Whether upgrading an existing network to an IPv6 network or creating a new IPv6 network, you can flexibly choose the appropriate routing protocol to form a network.

Perfect management

Support rich management interfaces, such as Console, MGMT port, USB port, SNMPv1/v2/v3, and general network management platform. Support CLI command line, Telnet, and cluster management to make device management more convenient, and support encryption methods such as SSH 2.0 and SSL to make management more secure. Support for SPAN/RSPAN images and multiple image observation ports. It can analyze network traffic output to take corresponding management and maintenance measures, making the originally invisible network business application traffic clear at a glance. It can provide users with multiple network traffic analysis reports, helping them optimize network structure and adjust resource deployment in a timely manner.

Supports MACSec and provides hardware level data encryption

The AP-3301-TF switch supports rail MACSec and implements hardware level data encryption functions. MACSec can provide users with MAC layer data encryption, data frame integrity verification, and data source authenticity verification, ensuring user data security.
